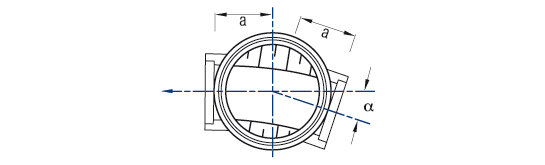

EIPROFILE DN 1000/1200/1500/2000/2500 | DIN EN 1917 / DIN V 4034-1
| Nennweite | Schacht ø | Schachthöhe von Sohle bis OK-Schacht | Absteckmaß | Schachtgewicht |
|---|---|---|---|---|
| DN | a | G | ||
| [mm] | [mm] | [m] | [m] | [ca. kg/St.] |
| 500/750 | 1000 | 1,25 | 0,75 | 3000 |
| 500/750 | 1200 | 1,25 | 0,85 | 4000 |
| 600/900 | 1200 | 1,40 | 0,85 | 4500 |
| 700/1050 | 1200 | 1,55 | 0,85 | 4200 |
| 700/1050 | 1500 | 1,55 | 1,00 | 6000 |
| 700/1250 | 1600 | 1,75 | 0,85 | 4500 |
| 700/1250 | 2000 | 1,75 | 1,00 | 7500 |
| 800/1200 | 1500 | 1,70 | 1,00 | 7500 |
| 800/1200 | 2000 | 1,70 | 1,25 | 10500 |
| 900/1350 | 1500 | 1,85 | 1,00 | 7500 |
| 900/1350 | 2000 | 1,85 | 1,25 | 10000 |
| 1000/1500 | 2000 | 2,00 | 1,25 | 10000 |
| 1000/1500 | 2500 | 2,00 | 1,50 | 12000 |
| 1200/1800 | 2000 | 2,30 | 1,25 | 12000 |
| 1200/1800 | 2500 | 2,30 | 1,50 | 14000 |
